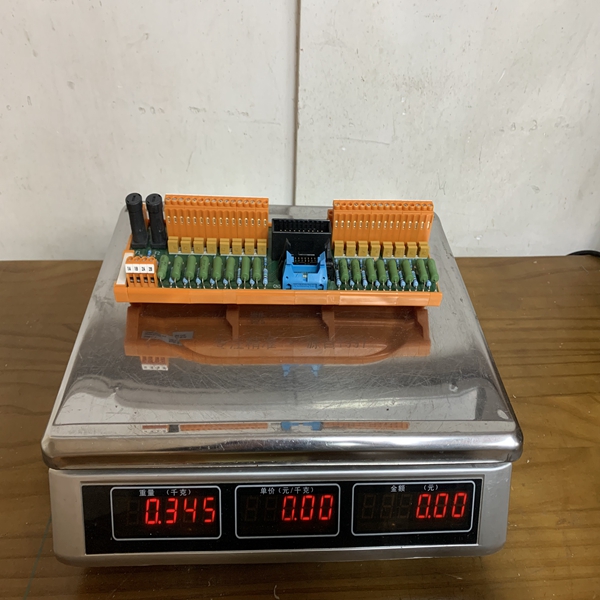

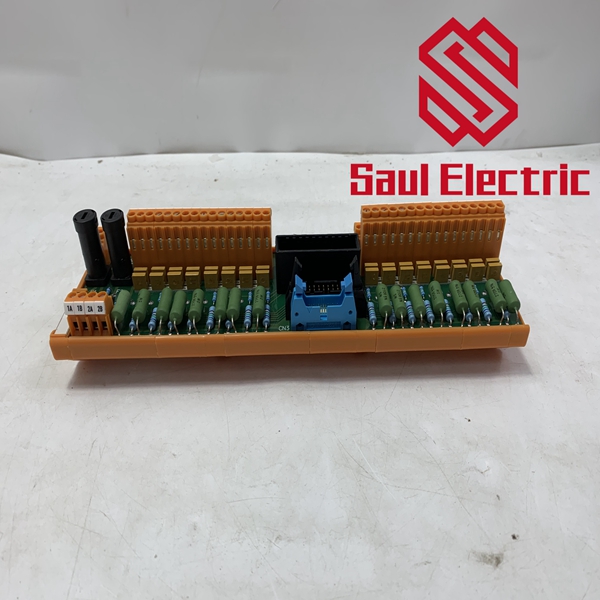

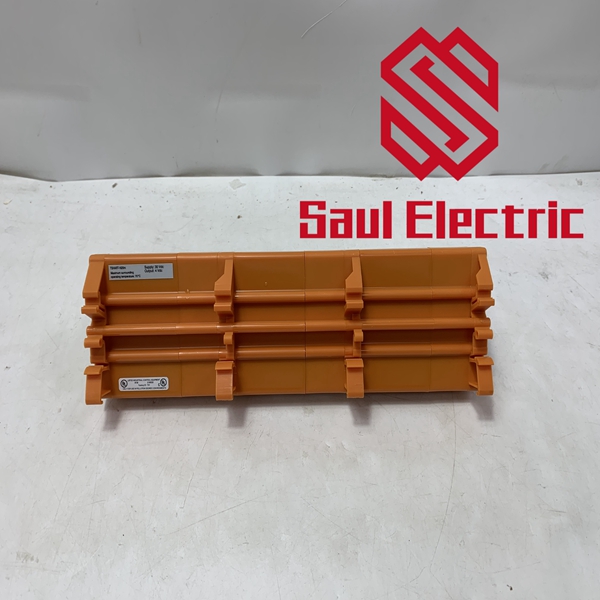

FC-TSHART-1620M honeywell Acceleration Transducer System.

Product Details: Honeywell FC-TSHART-1620M

The Honeywell FC-TSHART-1620M is a crucial component within Honeywell's Safety Manager systems. It is an analog input Field Termination Assembly (FTA)
that acts as an interface between field devices (like sensors) and the high-density analog input module, the SAI-1620m. This module is specifically designed to
 work with safety-related and non-safety-related applications, particularly in hazardous environments.

Product Specifications

• Product Type: Analog Input Field Termination Assembly (FTA)

• Channels: 16 analog input channels, arranged in two groups of eight.

• Input Current Range: 0–25 mA.

• Communication: Features a HART interface for advanced communication.

• Voltage:

• Supply Voltage: 30 V DC (external)

• Output Voltage: 0–4 V DC (to the SAI-1620m module)

• Safety Features:

• Suitable for Class I, Division 2 hazardous locations.

• Provides voltage-current limitation for enhanced safety.

• Physical:

• Dimensions: 250 x 70 x 60 mm (L x W x H)

• Mounting: Compatible with DIN Rail TS32 / TS35 x 7.5.

• Termination: Screw terminals with a maximum wire diameter of 2.5 mm².

• Variants: Available as FS-TSHART-1620m (non-conformal coated) and FC-TSHART-1620m (conformal coated) for added environmental protection.

Product Advantages

The FC-TSHART-1620M offers a range of benefits that are critical for industrial safety systems:

• High Reliability and Safety: Designed for use in safety-critical applications, this module ensures safe and reliable data acquisition. Its robust design and certifications for hazardous locations mean it can operate in demanding industrial environments.

• HART Communication: The integrated HART interface enables advanced diagnostics and configuration of field devices. This capability is vital for efficient maintenance and enhanced operational performance.

• Seamless Integration: As a Field Termination Assembly, it provides a clean and effective interface between field wiring and the control system. It is specifically designed to work with the Honeywell Safety Manager system and the SAI-1620m module, ensuring smooth integration.

• Accurate Signal Conversion: The module provides precise conversion of analog signals, which is essential for accurate control and monitoring of industrial processes.

• Power Distribution: It supplies power to each connected transmitter, simplifying wiring and system design.

Applications

The FC-TSHART-1620M is used in a variety of industrial applications where safety and precise control are paramount, including:

• Process Industries: Used in oil and gas, chemical, and petrochemical plants to monitor critical process variables like temperature, pressure, and flow in real time.

• Safety Instrumented Systems (SIS): It's a key component in safety systems that are designed to prevent hazardous events by bringing a process to a safe state when a trip condition is detected.

• Hazardous Environments: Its certification for Class I, Division 2 locations makes it suitable for use in areas where flammable gases, vapors, or liquids may be present.

• General Industrial Automation: Can be used in any industrial setting that requires reliable and safe analog signal input from various field devices.

.
