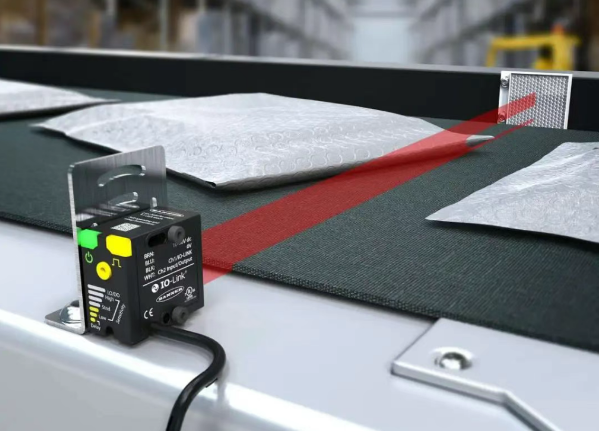

Banner introduces new B25 wide beam thin piece detection sensor! The B25 wide beam mirror-reflective photoelectric sensor can reliably detect various packages such as letters, plastic packaging bags, cartons, etc. It has excellent detection performance within the 25mm wide beam range, and is not affected by the shape, position and material of the object being measured.
Product Features
● Detection distance 2000 mm (with BRT-51X51BM reflector)
● Beam width 25mm
● 0.5 ms response speed
● Integrated IO-Link for easy setting: teaching and setting can be completed through buttons, IO-Link, or remote teaching line
● Adjustable sensitivity: high sensitivity, standard sensitivity, low sensitivity
● Protection level IP67 operating temperature -30°C to +60°C
● CE and UL certified

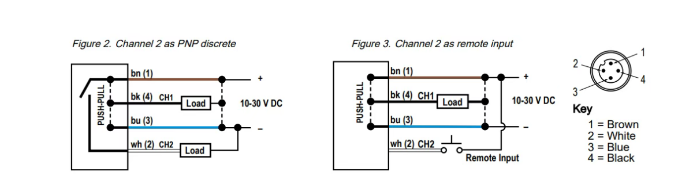

Product wiring diagram
