As we enter the intelligent era, the building sector is also joining the ranks of intelligent and digital transformation and upgrades, resulting in a surge in demand for automated control systems and a massive market. To address this, North China Industrial Control has developed the PPC-3312QL, an edge AI industrial tablet computer that supports integration into intelligent building control platforms.
Currently, domestic building automation systems are primarily used in various public buildings, residential buildings, and industrial parks. They place high demands on achieving energy conservation, carbon reduction, cost reduction, and efficiency improvement. These demands include integrated control and intelligent operation and maintenance of building power, lighting, air conditioning, water supply and drainage, security monitoring, and other equipment and systems. These requirements include real-time data monitoring and AI-powered early warning, cross-system linkage, and data-driven optimization.
To address this, North China Industrial Control empowers building intelligence from the edge. Its 12.1-inch industrial tablet, the PPC-3312QL, fully meets the requirements of intelligent building control platforms for edge AI processing of large data sets, complex module integration, remote control and management, human-machine interactive control, and 24/7 stable operation.

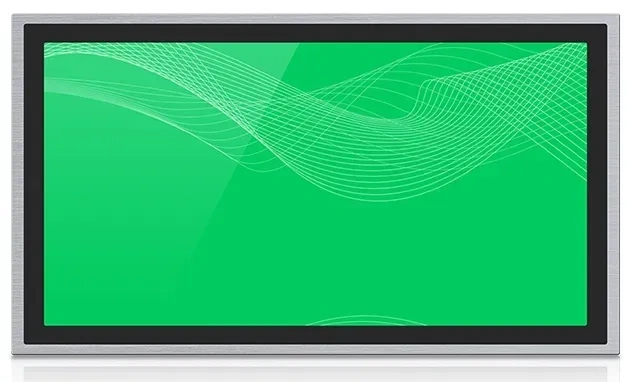

01 PPC-3312QL Product Details
The North China Industrial Control PPC-3312QL supports Intel® Alder Lake-N series processors, features a capacitive touch screen, an internal modular design, and rich interfaces. It boasts excellent processing power, human-computer interaction features, modular expandability, and industrial-grade durability.
High Energy Efficiency
Supporting Intel® Alder Lake-N (N97/N100) series and Core™ i3-N305 processors, it leverages high-performance E-cores for overall performance improvement, supports multi-threading, and boasts a TDP range of 6-15W, providing excellent edge AI computing capabilities with ultra-low power consumption.
It includes one onboard SODIMM slot, supporting DDR5-4800MHz, and a maximum memory of 16GB. It also supports one SATA 3.0 slot and one M.2 M-KEY 2280 SATA slot for high-speed caching, enhancing bandwidth and data throughput.
Human-Computer Interaction Features
It features a capacitive touchscreen with one HDMI port, multi-touch support, 1024x768 resolution, 700:1 contrast ratio, 500 cd/m² brightness, and a maximum color palette of 16.7M.
High-speed, multi-modal communication capabilities
It supports two Gigabit RJ45 Ethernet ports, two USB 3.0 ports, two to four USB 2.0 ports, and two to six optional COM ports, meeting the needs of cross-platform interoperability and high-speed data transmission for smart devices.
It supports one M.2 E-KEY 2230 for Wi-Fi/BT access and one M.2 B-KEY 3042/3052 for 4G/5G connectivity, enabling remote monitoring and management of the device.
Excellent I/O Expansion Capabilities
It supports eight GPIOs for interfacing with various external hardware, and one CONN port for expanded applications.
The modular design and wireless hard-wired design allow users to flexibly configure the device to meet their specific needs.
Industrial-Grade Ruggedness
Compatible with Windows and Linux operating systems, it supports a watchdog function, providing customers with a more open and stable system operating environment.
The entire system features a fanless, wide-temperature cooling structure, offering rugged features such as -20°C to 70°C operating temperature, as well as resistance to shock, electromagnetic interference, dust, and moisture.
Measuring 320x249x63.9mm, it supports a DC 12V power supply (optional 9-36V), and can be installed with a panel or VESA wall mount, making it suitable for a variety of scenarios.
